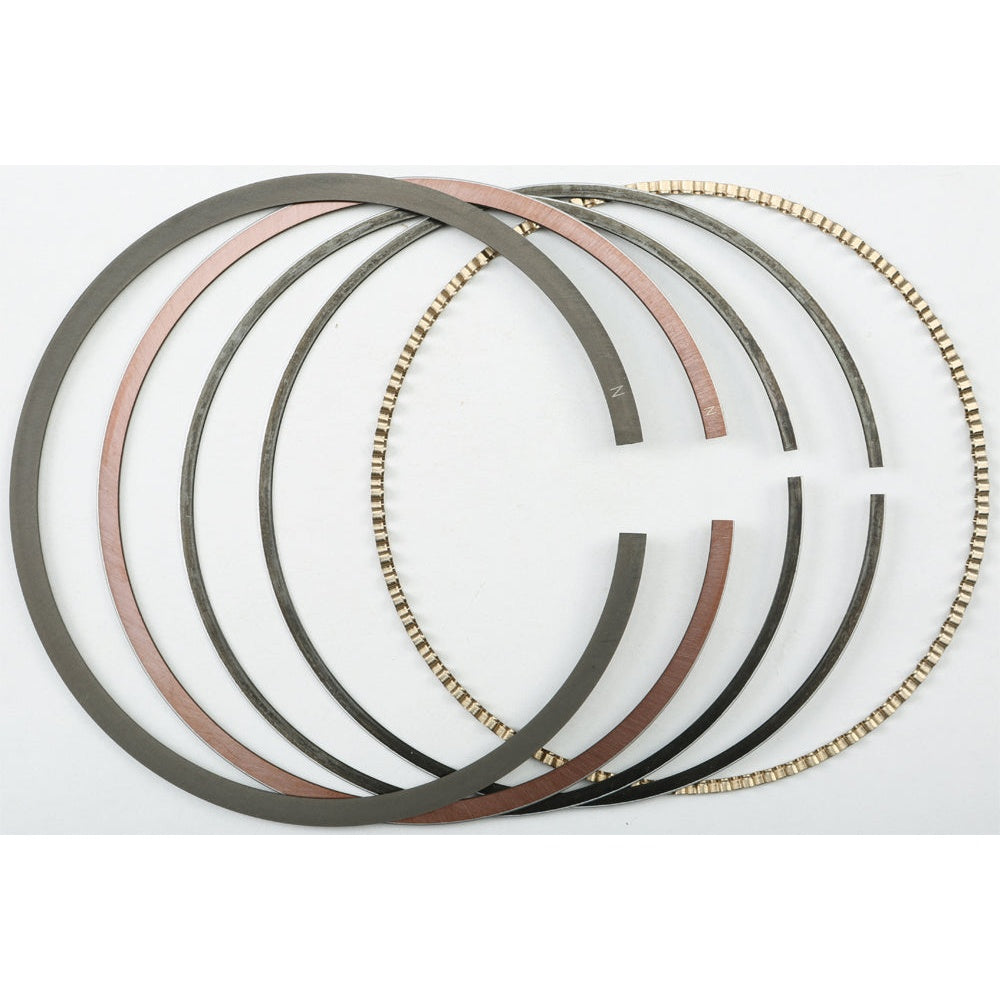

Wiseco Piston Ring Set 94.00mm (3701XR)

The Wiseco 3701XR is a 4-stroke piston ring set sized for a 94.00mm cylinder bore, supplied per piston with the correct top, second, and oil rings to restore compression, sealing, and oil control on a Wiseco top-end rebuild. Wiseco develops and tests its ring sets specifically for its own forged pistons, so they hold their geometry and seal under high-RPM and race conditions.

Specs

• Part number: 3701XR
• Bore size: 94.00mm
• Ring pack: 1.00mm top / 1.20mm second / 2.80mm oil
• Engine type: 4-stroke
• Quantity: Ring set for one (1) piston
• Brand: Wiseco

Fitment

This set fits 94.00mm Wiseco forged pistons. Common applications include big-bore Honda four-cylinder builds and Toyota 22R / 22RE / 22RET 2.4L engines running 94.00mm Wiseco pistons. Match the ring set to your Wiseco piston or top-end kit part number, or by confirmed 94.00mm bore — use the Year / Make / Model selector above to verify fit for your machine. Multi-cylinder engines require one set per cylinder.

Important compatibility note

These rings fit Wiseco pistons only — they will not work with OEM or other-brand pistons. Suitable for cast iron, Nikasil (nickel-ceramic), boron composite, and Electrofusion bores. Do not run them in chrome-plated bores unless Wiseco specifies otherwise, as this can cause engine damage.
